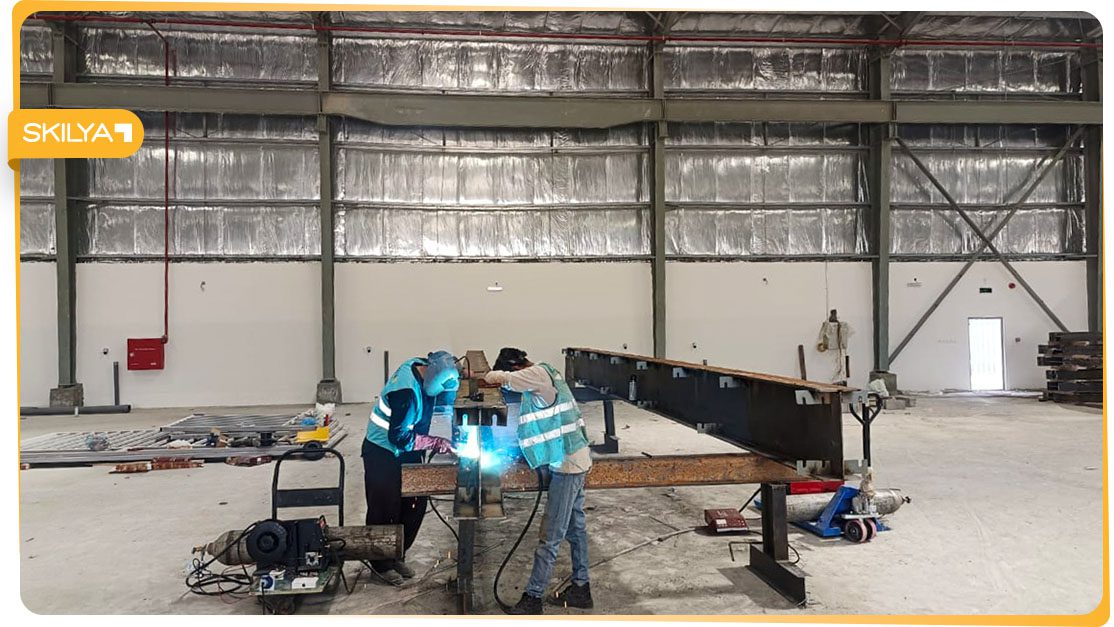

Welding Inspection in Structural Steel Fabrication: WPS, PQR, and NDT Explained
Structural steel fabrication depends on much more than cutting steel members to the correct dimensions and joining them together.
The quality of welded connections can directly influence fabrication accuracy, erection, structural performance, and the amount of repair work required before steel reaches the construction site.
For this reason, welding inspection in structural steel fabrication should be planned as part of the fabrication process rather than treated only as a final check after welding has been completed.
Documents such as the Welding Procedure Specification (WPS) and, where required, its supporting Procedure Qualification Record (PQR) help define and demonstrate suitable welding procedures. Inspection methods—including visual inspection and other forms of nondestructive examination—are then used to evaluate completed welds against the applicable acceptance criteria. AWS specifically treats WPS/PQR as core welding procedure and qualification documentation, while AISC identifies visual examination as the most commonly used NDE method in structural steel fabrication.
For project owners, consultants, and general contractors, understanding these terms makes it easier to evaluate how a steel fabrication company controls welding quality before fabricated members arrive on site.
Why Welding Quality Matters in Structural Steel Fabrication
A structural steel project may contain hundreds or thousands of welded connections.
These can occur in components such as:
- Beams
- Columns
- Base plates
- Connection plates
- Stiffeners
- Brackets
- Trusses
- Industrial platforms
- Equipment support structures
Welding requirements vary depending on connection design, material, thickness, welding process, position, and applicable project specifications.
The objective of welding quality control is therefore not simply to create a weld that looks acceptable.
The completed weld needs to satisfy the acceptance requirements defined by the governing project documents, codes, and specifications. AWS describes welding inspection as determining whether a weldment meets the acceptance criteria of the relevant code, standard, or other specified document.
What Is a WPS?
WPS stands for Welding Procedure Specification.
A WPS provides the instructions and parameters that welding personnel follow when producing a particular weld.
Depending on the process and project requirements, a WPS can define information such as:
- Welding process
- Base material
- Joint configuration
- Filler metal
- Electrode requirements
- Welding position
- Current and voltage parameters
- Preheat requirements
- Interpass temperature requirements
- Other applicable welding variables
Instead of allowing every welder to decide independently how a connection should be welded, the WPS creates a controlled procedure for production welding.
AWS provides dedicated guidance and training on WPS documentation and welding procedure qualification, reflecting the importance of these documents in welding quality management.
Why the WPS Is Important
Imagine a fabrication workshop producing dozens of similar structural steel connections.
Without a controlled procedure, different welders might use different parameters or techniques.
This can create inconsistency.
A WPS provides a common technical basis for the work.
Before welding begins, the fabrication team should therefore confirm that:
- The correct WPS applies
- The material matches the procedure
- The connection type is covered
- The required welding process is available
- Welding personnel understand the procedure
Using the wrong WPS can create problems even if the finished weld initially appears acceptable.
What Is a PQR?
PQR stands for Procedure Qualification Record.
While the WPS tells the fabrication team how production welding is to be performed, a PQR records the actual variables used during a procedure qualification test and the resulting test information.
AWS describes its WPS/PQR training as covering welding procedure specifications and their supporting procedure qualification records, and AWS Standard Welding Procedure Specifications are supported by PQRs produced under the applicable qualification rules.
In practical terms:
WPS = Instructions for performing the weld
PQR = Record supporting qualification of the welding procedure where qualification testing is required
Not every project situation should be assumed to require a newly tested PQR; this depends on the governing welding code, specification, and whether an applicable prequalified procedure is permitted.
WPS and PQR Are Not the Same as Welder Qualification
Another important distinction is between procedure qualification and welder qualification.
Qualifying a welding procedure demonstrates the suitability of the procedure within its applicable qualification range.
Qualifying an individual welder addresses whether that person is qualified to perform welding within the applicable range.
These are separate controls.
A fabrication company may therefore need to manage:
- Approved WPS documents
- Supporting PQR documentation where applicable
- Welder qualification records
Keeping these records organized allows quality teams to verify that both the procedure and the personnel meet project requirements.
What Is NDT in Welding?
NDT, or Non-Destructive Testing, refers to examination methods used to evaluate materials or welds without destroying the component being inspected.
AWS identifies several commonly used NDT methods, including:
- Radiographic Testing
- Ultrasonic Testing
- Magnetic Particle Testing
- Liquid Penetrant Testing
AISC additionally notes that Visual Testing (VT) is the most commonly used nondestructive examination method in structural steel fabrication and that visual examination can take place before, during, and after welding.
The appropriate inspection method depends on factors such as the weld type, anticipated discontinuities, project specification, governing code, and required acceptance criteria. AISC specifically notes that NDE method selection depends on the types of discontinuities anticipated, the ability of the method to identify them, and practical considerations such as cost.
1. Visual Testing – VT
Visual inspection is one of the most important welding quality controls.
It should not be understood as simply looking at the finished weld after fabrication.
Visual examination can occur at several stages.
Before Welding
The inspector may review:
- Joint preparation
- Fit-up
- Alignment
- Cleanliness
- Welding consumables
- Applicable WPS
During Welding
Inspection may consider whether work is progressing in accordance with the specified procedure.
After Welding
The completed weld can be examined for visible discontinuities and overall workmanship in accordance with the applicable acceptance criteria.
AISC identifies visual examination as the most commonly used NDE method in structural steel fabrication.
Good visual inspection can identify many problems early before more specialized testing becomes necessary.
2. Ultrasonic Testing – UT
Ultrasonic testing uses sound-wave principles to evaluate welds and materials.
It can be useful for detecting certain internal discontinuities that cannot be evaluated through surface visual inspection alone.
AWS identifies ultrasonic testing as one of the established NDT methods used in weld evaluation and provides dedicated training covering UT principles, calibration, examination techniques, evaluation, and reporting.
Depending on the connection and project requirements, UT may be specified for particular structural welds.
The decision should follow the applicable project documents rather than a general rule that every structural weld requires ultrasonic testing.
3. Magnetic Particle Testing – MT
Magnetic Particle Testing is another NDT technique recognized for weld inspection.
It is applicable to suitable ferromagnetic materials and can be used to identify relevant surface and near-surface discontinuities.
AISC includes MT among the examination methods used in structural steel fabrication alongside VT, PT, RT, and UT.
The exact use of MT should follow the inspection plan and applicable acceptance standard.
4. Liquid Penetrant Testing – PT
Liquid Penetrant Testing is primarily used to reveal surface-breaking discontinuities in suitable nonporous materials.
AWS and AISC both identify penetrant testing among established nondestructive examination methods.
It can be useful when a surface examination beyond ordinary visual inspection is required.
As with all NDT, the method should be selected because it is appropriate for the weld and expected discontinuity—not simply because it is available.
5. Radiographic Testing – RT
Radiographic testing uses radiation-based examination techniques to evaluate internal weld conditions.
It is one of the NDT methods recognized by AWS and AISC for weld examination.
RT may be specified for particular welding applications depending on the applicable code and project requirements.
Because different inspection methods have different capabilities and practical constraints, the project specification should clearly define where particular NDT methods are required.
NDT Does Not Replace Good Welding Control
A common misunderstanding is that extensive testing can compensate for poor fabrication practices.
It cannot.
Inspection is much more effective when quality is controlled throughout fabrication.
A strong welding quality process starts with:
Approved Procedure → Correct Materials → Qualified Personnel → Proper Fit-Up → Controlled Welding → Inspection
NDT then provides additional verification where required.
Finding large numbers of unacceptable welds at the end of fabrication creates repair work, delays, repeated inspection, and potentially disruption to coating and delivery activities.
Preventing welding problems is therefore more efficient than relying only on final detection.
Welding Inspection Should Start Before the Arc Is Struck
Several welding problems originate before actual welding begins.
Fabrication teams should verify items such as:
- Material identification
- Joint preparation
- Fit-up
- Member alignment
- Drawing revision
- WPS applicability
- Welder qualification
- Environmental conditions where relevant
For example, poor fit-up can make it difficult to execute the intended weld consistently.
Correcting the connection before welding is usually easier than repairing the completed weld.
Shop Drawings and Welding Inspection
Steel fabrication should follow approved fabrication and shop drawings.
These drawings can identify:
- Weld locations
- Connection geometry
- Member sizes
- Plates
- Stiffeners
- Assembly information
The fabrication team needs to ensure that the welding procedure aligns with the connection shown in the approved drawings.
Any technical discrepancy should be clarified before fabrication proceeds.
This links welding quality directly with the wider shop drawing and document-control process.
Weld Repair Should Be Controlled
If inspection identifies an unacceptable weld, the repair should not be improvised.
The project quality system should establish an appropriate process for:
- Identifying the issue
- Recording it where required
- Determining the approved repair method
- Performing the repair
- Re-examining the repaired area as required
Uncontrolled repeated welding or grinding can introduce additional problems.
Repair activities should therefore follow the applicable technical procedures and acceptance requirements.
Why Weld Inspection Matters Before Painting
Steel members commonly receive protective coatings after fabrication.
If welding defects are discovered only after painting, repair may require:
- Removing the coating
- Repairing the weld
- Reinspection
- Surface preparation
- Reapplying the coating
This creates unnecessary additional work.
Fabricators should therefore coordinate welding inspection with the coating sequence so that required examinations are completed at the appropriate stage.
Welding Quality and Structural Steel Erection
Fabrication quality affects site erection.
Poorly controlled welding can cause:
- Distorted steel members
- Misaligned connection plates
- Dimensional inaccuracies
- Difficulty during assembly
When fabricated steel arrives on site, erection teams should ideally be installing components that have already passed the required workshop quality controls.
Resolving major fabrication defects while cranes and erection crews are waiting can negatively affect project productivity.
Welding Inspection Records
Steel fabrication quality documentation may include records such as:
- WPS documents
- PQR documentation where applicable
- Welder qualification records
- Inspection reports
- NDT reports
- Material records
- Repair records
The required documents vary according to the project.
Maintaining traceable records provides a clearer quality history of the fabricated steel package.
Welding Inspection for Industrial Steel Structures
Industrial steel structures often contain a wide variety of welded components, including:
- Equipment platforms
- Pipe supports
- Access structures
- Production-area steel
- Maintenance platforms
- Heavy structural frames
These structures may need to coordinate closely with machinery, MEP systems, and operating requirements.
Welding quality should therefore be considered alongside fabrication dimensions, connection details, erection sequence, and final structural function.
How Skilya Controls Quality in Steel Fabrication Projects
Skilya provides steel fabrication as part of its integrated construction and contracting capabilities, supporting projects that require structural steel components together with coordination between workshop fabrication and site execution. Skilya also highlights its dedicated Steel Fabrication Division as an extension of its broader construction capabilities.
For structural and industrial steel projects, this integration allows welding quality to be considered alongside shop drawings, material requirements, fabrication accuracy, structural connections, protective coatings, transportation, and final erection.
A controlled fabrication process can include the use of applicable welding procedures, qualified personnel, inspection checkpoints, and required testing before steel components are released for subsequent fabrication stages or site installation.
Skilya’s wider capabilities in general contracting, structural steel, steel fabrication, MEP, and industrial construction also help coordinate fabricated steel with the civil foundations, anchor bolts, machinery, equipment supports, and building systems that interact with it. The company lists steel fabrication and structural steel among its integrated construction services.
For clients, this means steel fabrication is not treated only as a workshop activity. Through Skilya’s integrated project approach, fabrication quality can be connected with the wider objective of delivering steel components that are ready to fit within the actual construction and erection sequence.
Common Welding Quality Mistakes
Welding Without Confirming the Applicable WPS
The procedure should match the work being executed.
Treating the PQR and WPS as the Same Document
They perform different functions within welding procedure control.
Relying Only on Final NDT
Quality needs to be controlled before and during welding as well.
Ignoring Fit-Up Quality
Poor preparation can create welding problems before welding starts.
Performing Uncontrolled Repairs
Repairs should follow the applicable approved procedure.
Painting Before Required Inspection Is Complete
This can create unnecessary coating removal and rework.
Poor Documentation
Inspection and qualification records should be organized and traceable according to project requirements.
Structural Steel Welding Inspection Checklist
Before welding:
- Latest approved drawings are available
- Correct material is identified
- Applicable WPS is confirmed
- Supporting qualification documentation is available where required
- Welder qualifications are verified
- Joint preparation is checked
- Fit-up and alignment are inspected
During fabrication:
- Welding follows the applicable procedure
- Required inspection checkpoints are completed
- Welding issues are recorded and resolved
- Member distortion and dimensions are monitored
After welding:
- Required visual inspection is completed
- Specified NDT is performed
- Results are reviewed against applicable acceptance criteria
- Required repairs are completed
- Reinspection is performed where required
- Documentation is completed before subsequent activities
Final Thoughts
Welding quality in structural steel fabrication should not depend on a single inspection performed after fabrication is finished.
A reliable process connects:
WPS + Procedure Qualification + Welder Qualification + Fit-Up + Welding Control + Visual Inspection + Required NDT + Documentation
The WPS establishes how welding should be carried out, while supporting qualification records demonstrate procedure qualification where required. NDT methods such as VT, UT, MT, PT, and RT provide different ways of evaluating completed welds depending on the connection and project requirements.
For structural steel and industrial projects, controlling these activities in the fabrication workshop helps reduce repair work, improve fabrication consistency, and prepare steel components for more efficient erection on site.
