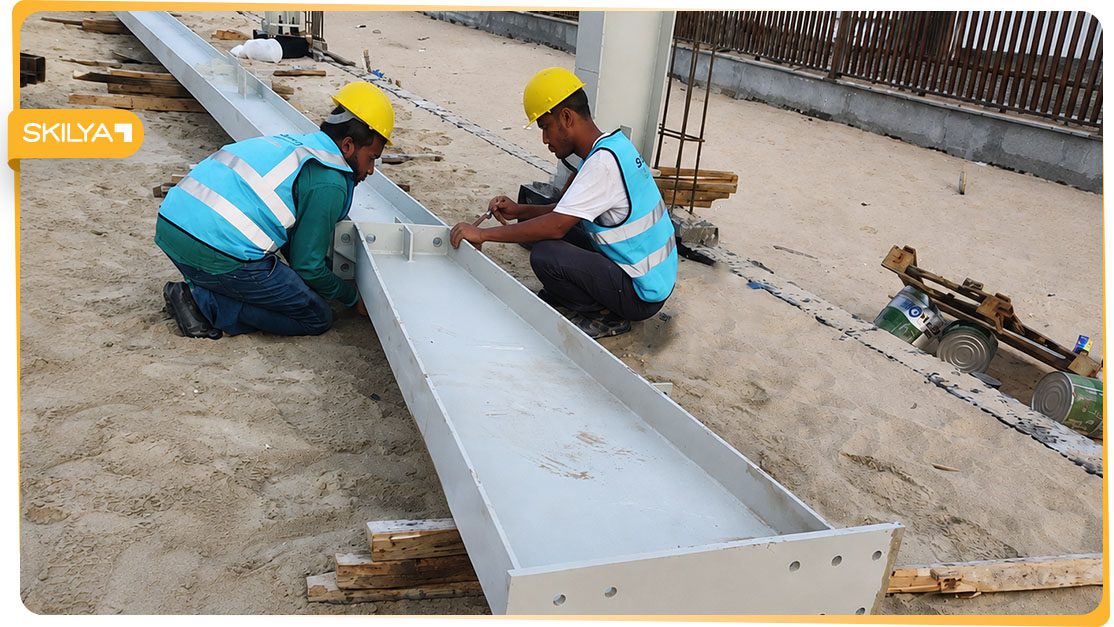

Bolted vs Welded Structural Steel Connections: Where Each Method Works Best
Structural steel buildings depend on thousands of connections that transfer loads between beams, columns, braces, platforms, and other steel members.
Two of the most common connection methods are bolted connections and welded connections.
Both are widely used in structural steel construction, but they serve different purposes and behave differently during fabrication and site erection.
The choice between bolted vs welded structural steel connections is not simply a matter of preference. It depends on factors such as structural design, fabrication requirements, site conditions, erection speed, accessibility, inspection, future maintenance, and construction sequencing.
In many successful steel projects, both methods are used together.
Welding may be completed in the fabrication workshop, while bolting is used extensively during erection on site. Understanding where each method works best helps project owners, consultants, fabricators, and contractors make better decisions throughout the steel construction process.
What Is a Bolted Structural Steel Connection?
A bolted connection joins steel members using bolts installed through prepared holes in plates or structural members.
Typical bolted connections may be found between:
- Beams and columns
- Steel frames
- Bracing members
- Base plates
- Platforms
- Equipment structures
- Secondary steel members
- Structural extensions
The connection usually involves components such as:
- Bolts
- Nuts
- Washers
- Connection plates
- Cleats
- End plates
The exact arrangement depends on the structural design.
One major advantage of bolted connections is that much of the preparation can be completed in the fabrication workshop before the steel reaches the site.
What Is a Welded Structural Steel Connection?
A welded connection joins steel components by creating a permanent welded joint between them.
Welding is commonly used during structural steel fabrication for items such as:
- Base plates
- Stiffeners
- Connection plates
- Built-up sections
- Brackets
- Trusses
- Industrial platforms
- Equipment supports
Welded connections may also be completed on site where required by the design.
However, site welding generally requires more control than workshop welding because conditions are less predictable.
Factors such as access, weather, positioning, inspection, and working at height can make field welding more complex.
Bolted vs Welded Connections: The Main Difference
The fundamental difference is how the steel members are joined.
Bolted systems use mechanical fasteners.
Welded systems create a permanent metallurgical connection between steel components.
From a construction point of view, this difference affects:
- Fabrication
- Transport
- Erection
- Inspection
- Modification
- Construction speed
For example, a steel beam with a welded end plate can be fabricated in the workshop and then bolted to a column on site.
This combines the advantages of both systems.
1. Bolted Connections Can Support Faster Site Erection
One of the biggest advantages of bolted structural steel connections is erection speed.
When steel members arrive with:
- Correct holes
- Approved connection plates
- Fabricated end plates
- Proper markings
erection teams can position and bolt the components relatively quickly.
This can reduce the amount of hot work required on site.
For large warehouses, factories, and steel buildings, repetitive bolted connections can help maintain a more predictable erection sequence.
The success of this approach depends on fabrication accuracy.
If bolt holes or plates are incorrectly positioned, the erection team may not be able to complete the connection as planned.
2. Welding Works Well in Controlled Fabrication Environments
Many welded connections are easier to control in a steel fabrication workshop.
Workshop conditions can provide better control over:
- Member positioning
- Welding equipment
- Welding procedures
- Material handling
- Inspection
- Access
Structural steel members can be placed in suitable positions before welding.
This is often much easier than trying to complete the same weld after the member has been erected several meters above the ground.
For this reason, fabrication planning often aims to maximize workshop welding and reduce unnecessary site welding where the design allows.
3. Site Welding Can Take More Time
Field welding may involve additional preparation.
The contractor may need:
- Welding machines
- Power supply
- Safe work platforms
- Weather protection
- Fire protection
- Welding consumables
- Inspection access
Working at height can also reduce productivity.
For example, welding a connection on a fabrication table is very different from welding the same connection while using a scaffold or elevated work platform.
Where erection speed is a priority, designers and fabricators may prefer connection strategies that minimize complex site welding.
4. Bolted Connections Depend on Accurate Hole Alignment
Bolted systems offer speed, but they require dimensional accuracy.
The following need to align correctly:
- Bolt holes
- Connection plates
- Structural members
- Steel geometry
If fabrication tolerances are not controlled, workers may have difficulty inserting bolts during erection.
This can lead to delays and attempts to modify steel on site.
Good steel fabrication therefore requires dimensional inspection before components are delivered.
Problems are generally easier to correct in the workshop than during erection.
5. Welded Connections Can Provide Clean Structural Details
Welding can create compact connection details without visible bolt groups.
This can be useful where:
- Connection geometry is tight
- Architectural appearance matters
- Plates need direct attachment
- Specialized fabrication is required
Industrial structures often use welded connections extensively in fabricated components such as:
- Equipment platforms
- Brackets
- Frames
- Supports
However, appearance should not determine the connection type on its own.
Structural requirements remain the primary consideration.
6. Bolted Connections Can Make Future Modification Easier
Certain bolted structures may be easier to dismantle or modify than permanently welded assemblies.
For example, if an industrial platform needs to be relocated or expanded in the future, bolted connections can sometimes simplify disassembly.
This may be useful in facilities where:
- Production layouts change
- Machinery is replaced
- Platforms are expanded
- Steel structures require future modification
However, not every bolted structural connection is designed for repeated removal.
Future modification should still be reviewed by the structural engineer.
7. Welded Connections Require Strong Welding Quality Control
A welded connection depends heavily on proper fabrication control.
The quality process may involve:
- Approved welding procedures
- Qualified welding personnel
- Fit-up inspection
- Visual inspection
- Required NDT
- Repair control
If welding is poorly executed, defects may require repair before the steel can proceed to coating or erection.
Welding inspection should therefore be integrated into the fabrication sequence.
This is one reason workshop welding is often preferred where practical: inspection and repair can be managed before the steel reaches the project site.
8. Bolted Connections Also Require Inspection
Bolting should not be considered automatically simpler from a quality perspective.
The contractor still needs to verify items such as:
- Correct bolt type
- Correct bolt size
- Correct bolt grade
- Proper washers
- Bolt installation
- Connection alignment
Certain structural connections may also have specific tightening or installation requirements depending on the design and specification.
The erection team should therefore follow the approved connection details rather than relying on general site practice.
9. Connection Choice Affects Transportation
Steel fabrication must consider how completed members will be transported.
Fully welded assemblies can sometimes become too large for practical transportation.
Instead, the structure may be divided into transportable sections that are connected on site using bolts.
This is particularly important for:
- Long trusses
- Large industrial frames
- Steel platforms
- PEB structures
Fabrication and erection planning should therefore be developed together.
The most efficient workshop connection may not always be the most practical transportation solution.
10. Connection Choice Affects Crane Time
Crane productivity is an important consideration during structural steel erection.
If a steel member requires extensive site welding while being held or temporarily supported, crane and erection resources may remain occupied for longer.
Bolted connections can often allow the erection team to:
- Lift the member
- Position it
- Install temporary or permanent bolts
- Release the crane
- Continue with the next member
This can improve erection productivity.
Connection design therefore affects not only structural behavior but also the entire site construction sequence.
11. Structural Steel Connections in Industrial Platforms
Industrial platforms commonly use a combination of welding and bolting.
For example:
- Platform beams may be welded with connection plates in the workshop.
- Columns may have welded base plates.
- Beams and columns may then be bolted together during erection.
This combination allows detailed fabrication to be completed under controlled workshop conditions while keeping site assembly efficient.
The same strategy can be used for:
- Access platforms
- Maintenance walkways
- Pipe support structures
- Equipment support steel
12. Connections in Pre-Engineered Buildings
Pre-engineered buildings rely heavily on repeatable connection systems.
Large frame components are fabricated before delivery and assembled on site.
Bolted connections help make erection faster and reduce the amount of fabrication work performed at the project location.
This approach is particularly suitable for:
- Warehouses
- Factories
- Industrial buildings
- Logistics facilities
Accurate fabrication and anchor bolt positioning are essential because many structural components arrive pre-engineered for specific connection locations.
13. Structural Steel Extensions and Existing Buildings
Factory expansions can present additional challenges.
New structural steel may need to connect with an existing building.
Before choosing the final connection solution, the project team may need to investigate:
- Existing steel dimensions
- Existing connection details
- Actual site geometry
- Accessibility
- Structural condition
In some cases, a bolted solution may reduce site welding.
In others, welding may be necessary because existing steel does not contain suitable connection provisions.
The final decision should be based on engineering evaluation and verified site conditions.
14. Weather Can Influence Site Welding
Environmental conditions can affect field welding operations.
Site teams may need to manage conditions such as:
- Wind
- Rain
- Dust
- High temperatures
Temporary protection may be required depending on the welding process and project requirements.
Bolted erection is often less sensitive to these factors, although all structural erection activities still require appropriate safety planning.
This is another reason to complete as much controlled fabrication as possible before steel delivery.
15. Fire Safety During Field Welding
Welding introduces hot work.
Inside existing industrial facilities, this can require additional controls such as:
- Hot work permits
- Fire watch
- Fire extinguishers
- Protection of nearby equipment
- Removal of combustible materials
On factory expansion or shutdown projects, reducing field welding may help simplify execution in sensitive operating areas.
Bolted connections can therefore provide an operational advantage where hot work restrictions are significant.
Which Is Stronger: Bolted or Welded Connections?
This question does not have a useful universal answer.
Both bolted and welded connections can be designed to safely transfer structural loads.
Performance depends on:
- Connection design
- Loading
- Material
- Detail
- Fabrication
- Installation
The correct question is therefore not:
“Which connection is stronger?”
It is:
“Which connection is appropriate for this structural requirement and construction condition?”
That decision belongs to the structural design process.
When Bolted Connections May Be Preferred
Bolted connections can be particularly useful when:
- Fast site erection is important
- Large components require site assembly
- Field welding should be minimized
- Structures may require future modification
- Repetitive steel frames are used
- Transportation limits require sectional assembly
When Welded Connections May Be Preferred
Welding can be particularly useful when:
- Fabrication takes place in a controlled workshop
- Compact connection geometry is required
- Plates and stiffeners need permanent attachment
- Built-up members are being fabricated
- Specialized industrial components are required
- Connection detailing makes welding more practical
Again, the final solution should follow the approved structural design.
Why Many Steel Projects Use Both
In practice, structural steel construction is rarely an all-bolted or all-welded system.
A common fabrication and erection strategy may be:
Workshop Welding + Site Bolting
For example:
- Base plate welded to column
- Stiffeners welded in workshop
- End plates welded to beams
- Steel delivered to site
- Beams bolted to columns during erection
This arrangement combines controlled workshop fabrication with faster site assembly.
How Skilya Coordinates Bolted and Welded Structural Steel Connections
Skilya’s structural steel and steel fabrication capabilities allow connection planning to be considered across both workshop fabrication and site erection.
For industrial, commercial, and structural steel projects, Skilya can coordinate approved shop drawings, steel fabrication, welding requirements, connection plates, bolt arrangements, dimensional control, protective coatings, transportation, and final erection as interconnected stages of the same structural package.
Where welded connections are required, fabrication activities can be completed under controlled workshop conditions wherever practical, with welding quality checks incorporated before components move to subsequent stages.
For bolted connections, fabrication accuracy becomes critical so that steel members, plates, and connection holes align correctly during site erection.
Through its broader general contracting services, Skilya can also coordinate structural steel connections with civil foundations, anchor bolts, machinery foundations, MEP interfaces, and the wider construction schedule.
This integrated approach is particularly valuable in factories, warehouses, industrial platforms, and steel building projects where connection design has a direct impact on fabrication efficiency, transport, crane operations, and erection speed.
Common Structural Steel Connection Mistakes
Selecting Connections Based Only on Site Convenience
Structural requirements should determine the approved connection.
Excessive Field Welding
Work that could have been completed in the workshop may unnecessarily slow erection.
Poor Hole Alignment
Fabrication inaccuracies can prevent bolted assembly.
Unauthorized Site Modifications
Drilling, cutting, or welding should not be improvised without technical approval.
Ignoring Transportation Requirements
Large welded assemblies may be difficult to deliver.
Weak Inspection
Both welded and bolted connections require quality control.
Poor Coordination with Erection
Fabrication details should reflect how the structure will actually be assembled.
Final Thoughts
The choice between bolted vs welded structural steel connections should be based on the complete project strategy rather than only the connection itself.
Bolted connections can support faster erection, easier site assembly, and flexible transportation.
Welded connections can provide controlled and efficient fabrication when completed in a workshop environment.
In many industrial and commercial steel projects, the most effective solution combines both.
Successful steel construction therefore requires coordination between:
Structural Design + Shop Drawings + Fabrication + Welding + Bolting + Transportation + Erection
When these stages are considered together, connection design can support not only structural performance but also faster, safer, and more predictable project execution.
